Nickel Alloy Sheet Uns N05500/AMS4676 Monel K500 Plate
Model NO. | Monel K500 Sheet |
Width | 1000/1219/1500mm |
Length | as Your Requirments |
Surface | 2b/Ba/No.1 |
Sample | Free-Sample |
MOQ | 100kgs |
Technique | Cold Rolled, Hot Rolled |
Stock | in Stock |
Product Type | Rod |
PCD | 100mm |
ET | 35mm |
Transport Package | Wooden Package |
Specification | monel K500 |
Trademark | Asiaalloy |
Origin | China |
HS Code | 7505120000 |
Production Capacity | 50000kg/Month |
Description
Specifications Of Monel K-500 Nickel Alloy
UNS | W. Nr |
N05500 | 2.4375 |
Chemical Composition
Composition | Ni | Cu | Al | Ti | Fe | Mn | S | C | Si | |
Content (%) | Min. | 63 | 27.0 | 2.30 | 0.35 | |||||
Max. | 33.0 | 3.15 | 0.85 | 2.0 | 1.5 | 0.01 | 0.25 | 0.5 |
Mechanical Properties
Tensile Strength (σb/MPa) | Yield Strength (σp0.2/MPa) | Elongation (σ5/%) |
1100 | 790 | 20 |
Product Form And Standard
Bar | Pipe and Tube | Plate, Sheet, and Strip |
ASTM B865 | DIN 17751 | DIN 17750 |
Available Sizes And Specifications
Monel K-500 available sizes and specifications | |
Grade | Monel K-500 |
Nickel plate | Thickness: 0.3mm – 150.0mm Width: 1000mm – 3000mm |
Nickel strip/ nickel foil | Thickness: 0.02mm – 16.0mm Width: 5mm – 3000mm |
Nickel coil | Thickness: 0.3mm – 16.0mm Width: 1000mm – 3000mm |
Nickel pipe | Outside diameter: 6mm – 1219mm Thickness: 0.5mm – 100mm |
Nickel Capillary Pipe | Outside diameter: 0.5mm – 6.0mm Thickness: 0.05mm – 2.0mm |
Nickel bar | Diameter: Ф4mm – Ф600mm |
Nickel wire rod | Diameter:Ф0.01mm – Ф6mm |

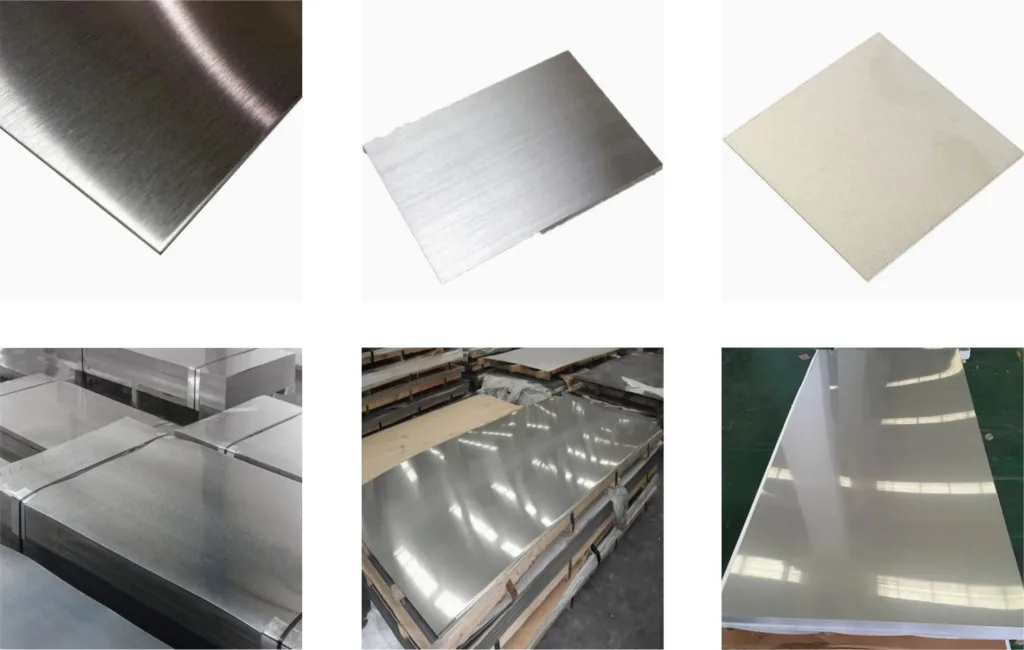

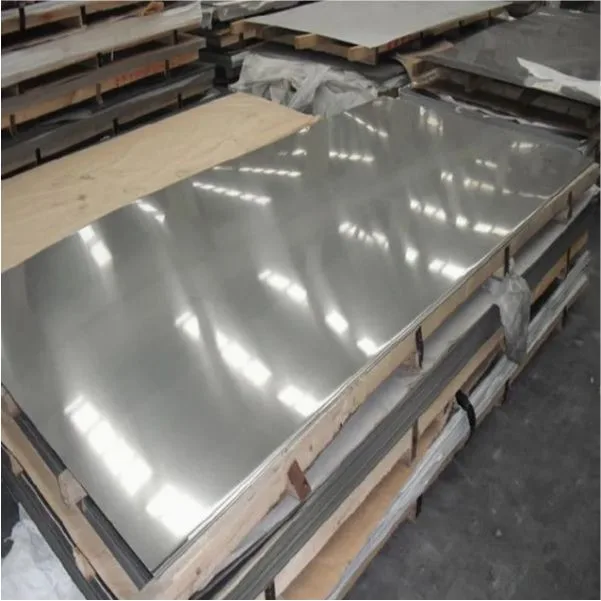

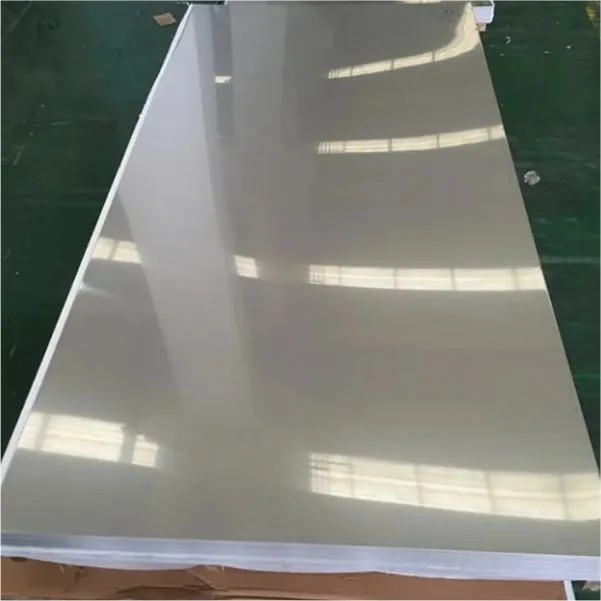

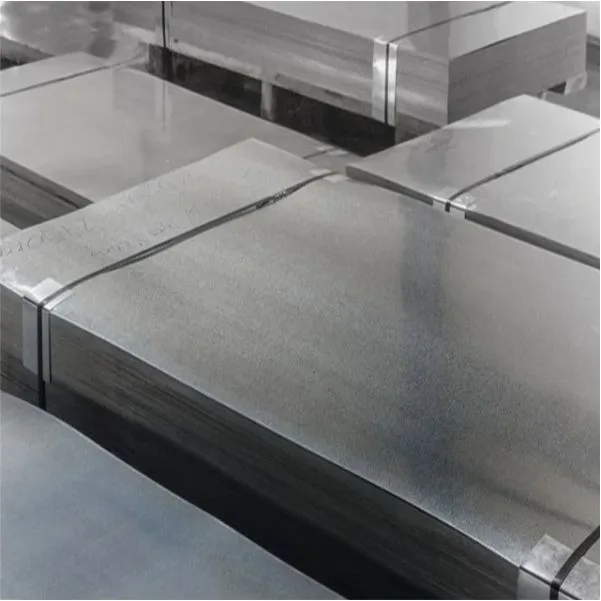

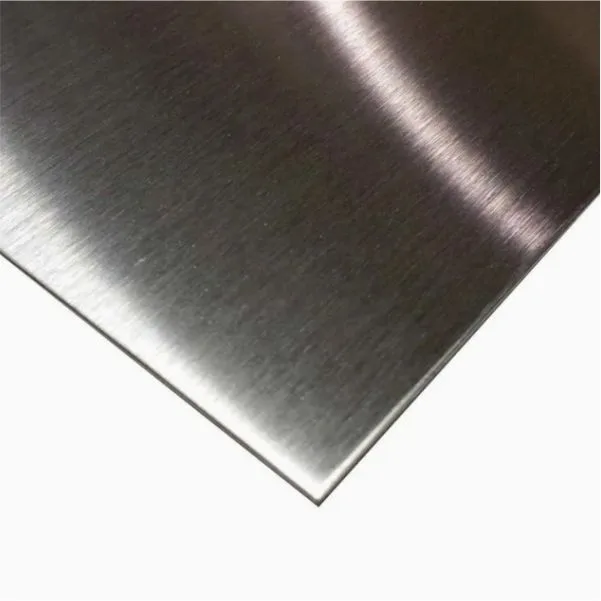

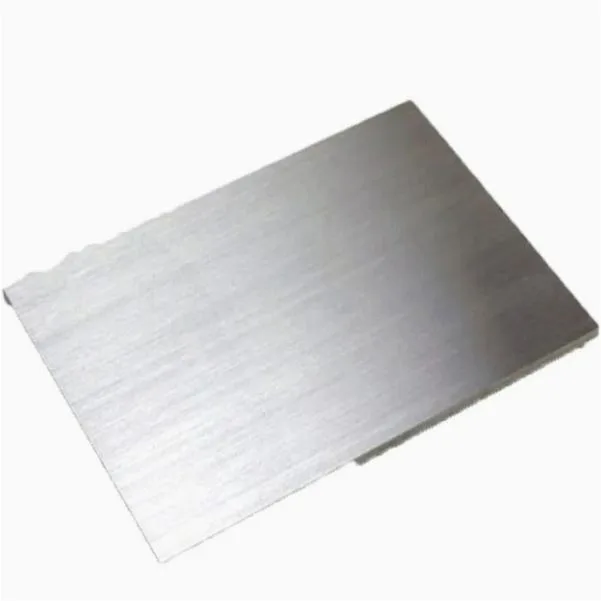

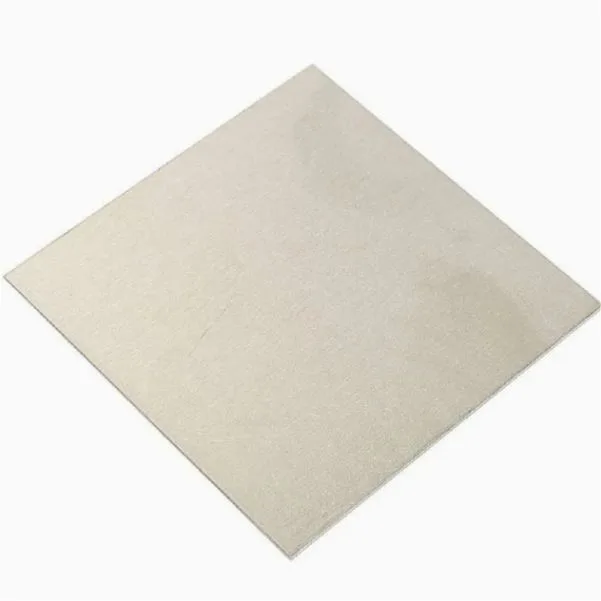

Detailed Photos
FAQ
Are you a factory or a trading company?
We are a dedicated factory specializing in the manufacturing of seamless stainless steel pipes. Additionally, we offer welded stainless steel pipes and pipe fittings to meet your comprehensive needs. Our in-depth market knowledge ensures that we deliver only the highest quality products, each meticulously inspected before shipment.
Do you have any certificates?
We proudly hold numerous prestigious domestic and international certifications, including the EU ISO9001 Quality Management System Certification, TUV Welding Certification, and the China Pressure Pipe Manufacturing License (TS).We are also exclusively authorized by the American Hastelloy Company in China for the collaboration, development, and production of Hastelloy long products.
What is your delivery time?
Delivery time primarily depends on your order volume. Typically, we deliver within approximately one month for a standard 40FT container. For in-stock items, shipping can be expedited to just 5 days.
What are your payment terms?
Our standard payment terms are a 30% deposit with the remaining balance against the bill of lading. We also accept L/C. Shipping terms include EXW, CFR, and CIF, tailored to your preference.
How can you guarantee the quality of my goods?
We ensure all materials undergo 100% PMI testing and precise measurement before shipping. We welcome third-party inspections and provide the EN10204.3.1B Mill Test Certificate for all materials.
How do you establish long-term and positive business relationships?
1. We maintain superior quality and competitive pricing to maximize our customers’ benefits.
2. We respect every customer, conducting business with sincerity and maintaining high service standards both before and after every transaction.
