Inconel 718 Steel Pipe/Precision Pipe/Capillary Tubes for Semiconductor Manufacturing
Model NO. | Inconel 718 |
Material | Alloy Steel |
Surface Treatment | Polished |
Usage | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose |
Section Shape | Round |
Thickness of Steel Strip | 0.01mm -1mm |
Steel Strip Width | Maximum 500mm |
Cold Rolled Steel Plate Thickness | 1mm -3mm |
Width of Cold-Rolled Steel Plate | Maximum 1500mm |
Thickness of Hot-Rolled Medium Thick PLA | 4mm -30mm |
Width of Hot-Rolled Medium Thick Plate | Maximum 2800mm |
Length of Hot-Rolled Medium Thick Plate | Maximum Length of 12 Meters |
Delivery Status | Solid Solution, Annealing, Fully Hard, Semi Hard |
Surface State | Pickling, Sandblasting, Polishing, Mirror Finish |
Transport Package | Shipping Package |
Trademark | Asiaalloy |
Origin | China |
HS Code | 75071200 |
Description
We manufacture top-notch nickel alloy sheets, strips, and coils using Inconel, Monel, Hastelloy, Incoloy, and Nickel 200/201. These alloys are perfect for harsh applications in chemical, petroleum, aerospace, energy, and marine engineering, offering superior corrosion resistance, high-temperature endurance, and strength. | |
Outer diameter of capillary tube | 6mm – 500mm |
Seamless pipe outer diameter | 0.2mm – 6mm |
wall thickness | 0.05mm – 40mm |
Single length | Maximum length of 12 meters |
coil length | maximum length of 150 meters |
Delivery Status | Solid solution, annealing, and age hardening |
Surface state | Pickling,sandblasting,polishing BA,EP |
Alloy | Name | Series | ASTM specifications |
Alloy 200 | Nickel 200 | N02200 | B160 |
Alloy 201 | Nickel 201 | N02201 | B160 |
Alloy C-276 | Hastelloy C-276 | N10276 | B574 |
Alloy C-22 | Hastelloy C-22 | N06022 | B574 |
Alloy C-2000 | Hastelloy C-2000 | N06200 | B574 |
Alloy C-4 | Hastelloy C-4 | N06455 | B574 |
Alloy B-2 | Hastelloy B-2 | N10665 | B335 |
Alloy B-3 | Hastelloy B-3 | N10675 | B335 |
Alloy G-30 | Hastelloy G-30 | N06030 | B581 |
Alloy X | Hastelloy X | N06002 | B572 |
Alloy 600 | Inconel 600 | N06600 | B166 |
Alloy 601 | Inconel 601 | N06601 | B166 |
Alloy 625 | Inconel 625 | N06625 | B446 |
Alloy 690 | Inconel 690 | N06690 | B166 |
Alloy 718 | Inconel 718 | N07718 | B637 |
Alloy X-750 | Inconel X-750 | N07750 | B637 |
Alloy 400 | Monel 400 | N04400 | B164 |
Alloy K-500 | Monel K-500 | N05500 | B865 |
Alloy 800 | Incoloy 800 | N08800 | B408 |
Alloy 800H | Incoloy 800H | N08810 | B408 |
Alloy 800HT | Incoloy 800HT | N08811 | B408 |
Alloy 825 | Incoloy 825 | N08825 | B425 |
Alloy 925 | Incoloy 925 | N09925 | B637/ B805 |
Alloy 20 | Incoloy 20 | N08020 | B473 |
Alloy 80A | Nimonic 80A | N07080 | B637 |
Alloy 90 | Nimonic 90 | N07090 | AMS 5829 |
Alloy 263 | Nimonic 263 | N07263 | AMS 5886 |
Waspaloy | Waspaloy | N07001 | B637 |
Alloy 188 | Haynes 188 | R30188 | AMS 5772 |
Alloy L-605 | Haynes 25 (L-605) | R30605 | AMS 5759 |
Alloy 36 | NILO alloy 36 (Invar 36) | K93600 & K93601 | |
Alloy 42 | NILO alloy 42 | K94100 | F30 |
Alloy K | NILO alloy K (Kovar) | K94610 | F15/AMS 7727 |

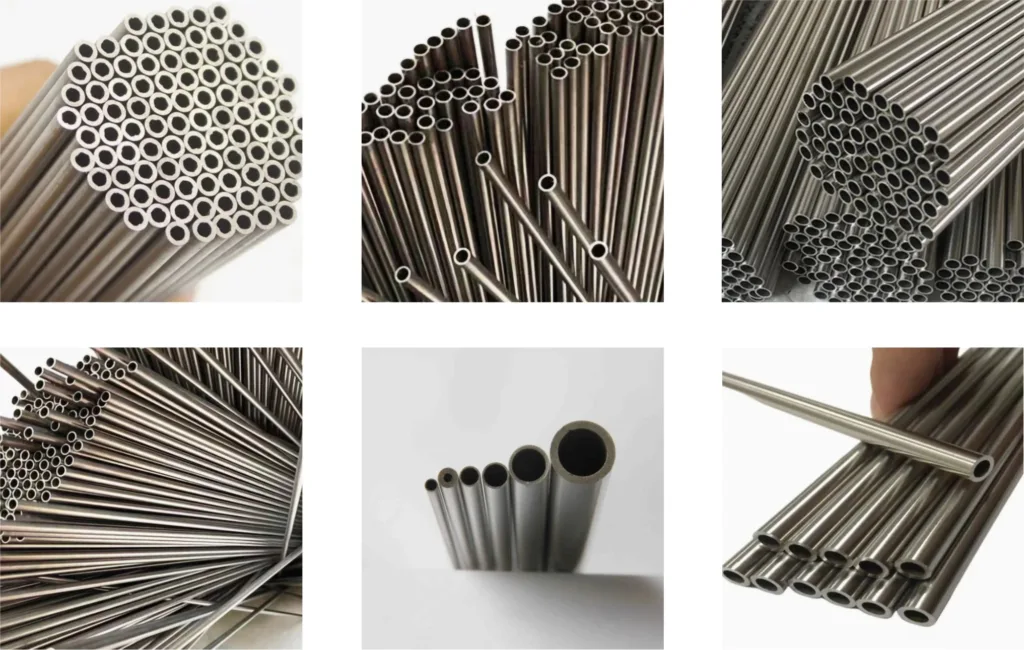

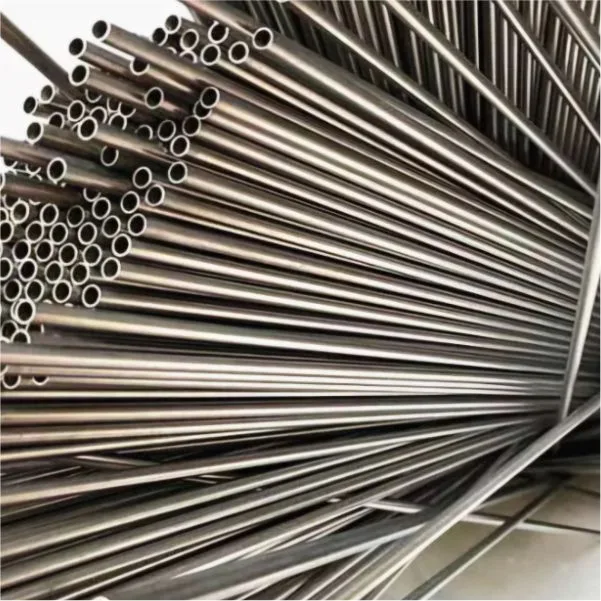

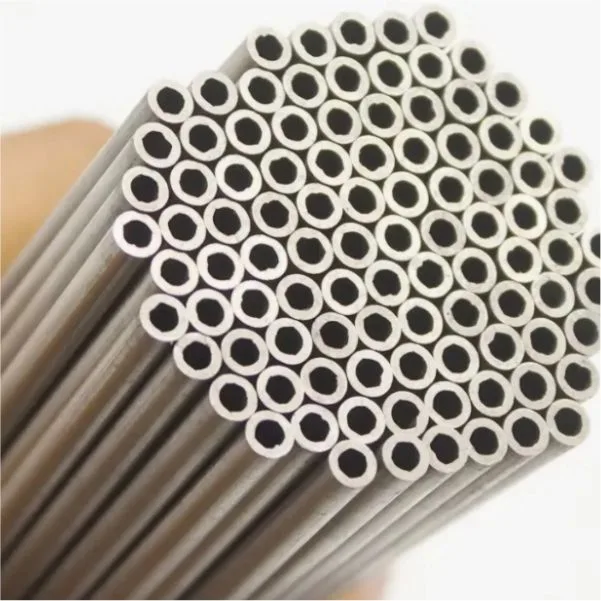

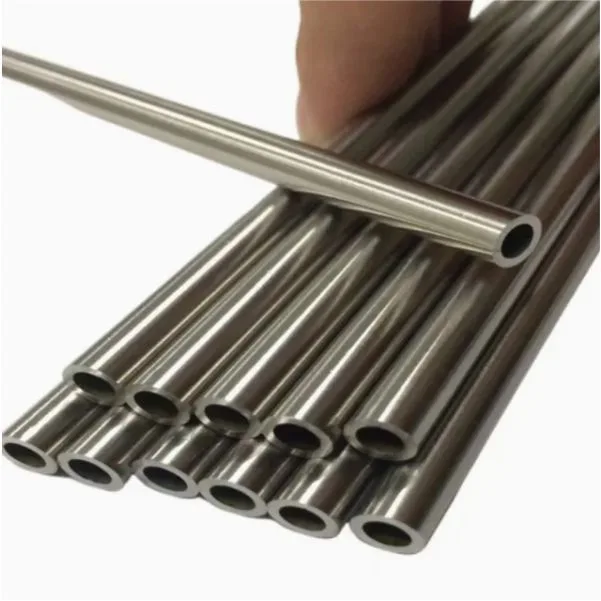

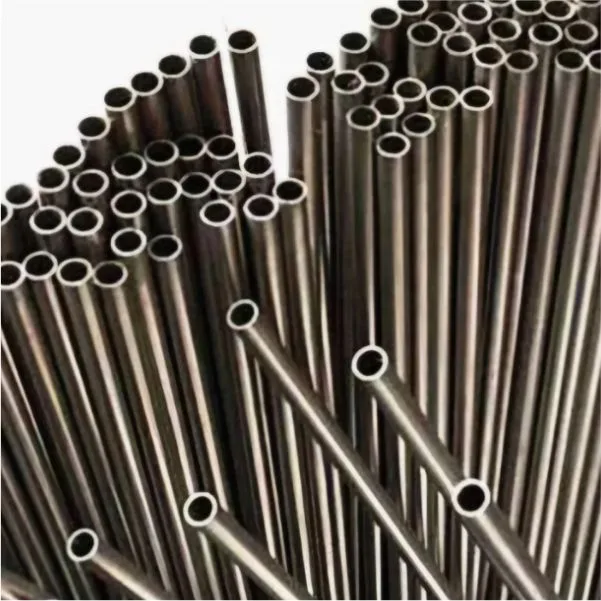

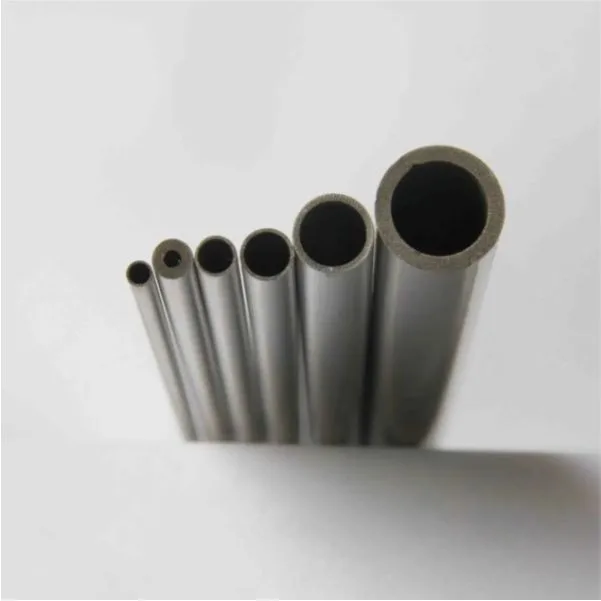

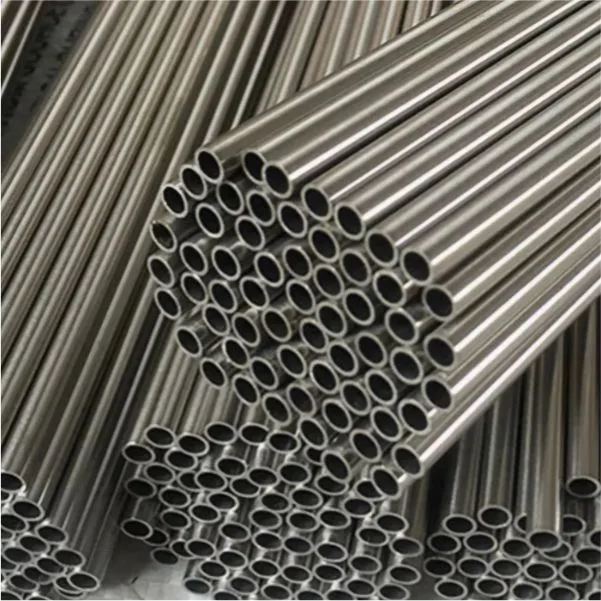

Detailed Photos
FAQ
Are you a factory or a trading company?
We are a dedicated factory specializing in the manufacturing of seamless stainless steel pipes. Additionally, we offer welded stainless steel pipes and pipe fittings to meet your comprehensive needs. Our in-depth market knowledge ensures that we deliver only the highest quality products, each meticulously inspected before shipment.
Do you have any certificates?
We proudly hold numerous prestigious domestic and international certifications, including the EU ISO9001 Quality Management System Certification, TUV Welding Certification, and the China Pressure Pipe Manufacturing License (TS).We are also exclusively authorized by the American Hastelloy Company in China for the collaboration, development, and production of Hastelloy long products.
What is your delivery time?
Delivery time primarily depends on your order volume. Typically, we deliver within approximately one month for a standard 40FT container. For in-stock items, shipping can be expedited to just 5 days.
What are your payment terms?
Our standard payment terms are a 30% deposit with the remaining balance against the bill of lading. We also accept L/C. Shipping terms include EXW, CFR, and CIF, tailored to your preference.
How can you guarantee the quality of my goods?
We ensure all materials undergo 100% PMI testing and precise measurement before shipping. We welcome third-party inspections and provide the EN10204.3.1B Mill Test Certificate for all materials.
How do you establish long-term and positive business relationships?
1. We maintain superior quality and competitive pricing to maximize our customers’ benefits.
2. We respect every customer, conducting business with sincerity and maintaining high service standards both before and after every transaction.
