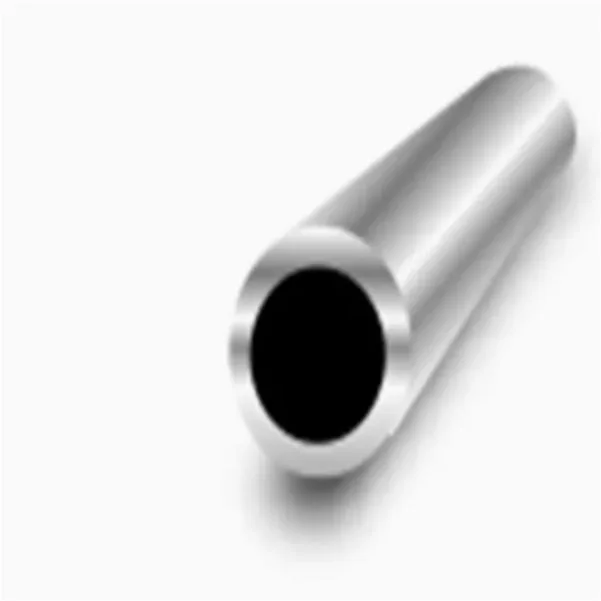

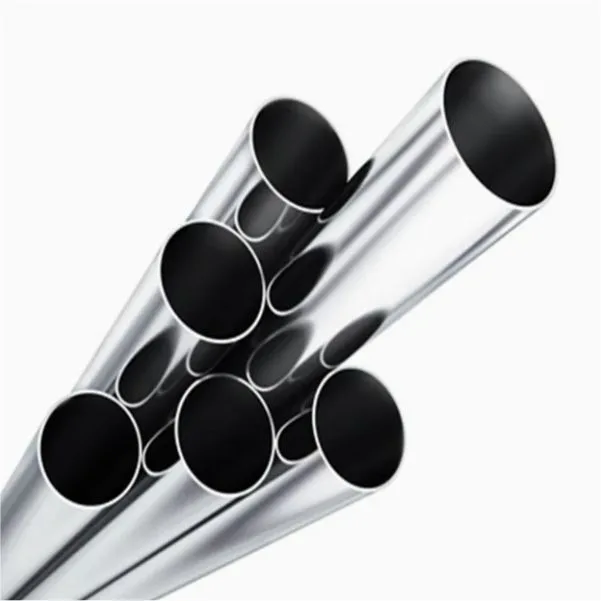

Hastelloy C22/C276/B2/B3/C4/G2/G3 Nickel Alloy Seamless Pipe
| Model NO. | Hastelloy C22, Hastelloy X, Hastelloy B2,B3,C4 |
| Purity | Remainder |
| Alloy | Alloy |
| Type | Seamless Pipe/Welded Pipe/Bar |
| Powder | Not Powder |
| Diameter | 5-100mm |
| Mtc | En 10204/3.1 |
| Condition | Annealed, Pickling, Turned |
| Keyword | Hastelloy C22/B3/B4 Pipe |
| Trademark | Asiaalloy |
| Origin | China |
| HS Code | 75062000 |
| Production Capacity | 5000 Tons/Month |
Description
Hastelloy C22 is a nickel-chromium-molybdenum solid solution strengthened super-alloy with a nominal chemical composition of 56% nickel, 22% chromium, and 13% molybdenum, with additions of iron, tungsten, and cobalt. It is commonly referred to by the tradename Hastelloy® C22 and the universal designation UNS N06022. C22 has excellent corrosion and oxidation resistance, great mechanical properties over a wide range of temperatures, and good fabrication properties.
CHARACTERISTICS:
CORROSION RESISTANCE
Hastelloy C22 is one of the most corrosion-resistant alloys available, even outperforming C276 and 625. It is resistant to almost all reducing and oxidizing environments, including strong oxidizers, seawater, and organic acids. In addition, C22 has excellent resistance to chloride-induced localized corrosion, including pitting, crevice corrosion, and stress corrosion cracking.
OXIDATION RESISTANCE
Hastelloy C22 has excellent resistance to oxidation, carburization, and sulfidation at elevated temperatures. However, C22 should not be used at temperatures above 1250°F due to the possible formation of embrittling phases.
MECHANICAL PROPERTIES
Hastelloy C22 is typically provided in the annealed condition with a minimum yield strength of 45 ksi. However, C22 can be cold worked to higher strength levels.
HEAT TREATMENT
Hastelloy C22 is typically annealed at 2050°F (1121°C), followed by rapid cooling.
WORKABILITY
Hastelloy C22 can be hot worked or cold worked. However, C22 work-hardens rapidly. Therefore, cold working must often be performed in stages with intervening anneals. Parts should be annealed after cold working.
Hastelloy C22 Specifications:
| UNS | W. Nr | DIN |
| N06022 | 2.4602 | NiCr21Mo14W Nicrofer 5621hMoW |
Hastelloy C22 Product Forms and Standards:
| Bar | Sheet/Strip | Pipe |
| ASTM B462 ASTM B564 | ASTM B575 ASTM B906 | ASTM B622 ASTM B619 ASTM B626 |
Chemical Compositions of Hastelloy C-22 Nickel Alloy
| Composition | Ni | Cr | Fe | Mo | W | Co | C | Mn | Si | S | V | P | Ti | |
| Content (%) | Min. | Bal. | 20 | 2 | 2.5 | |||||||||
| Max. | 22.5 | 6 | 3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.02 | 0.35 | 0.02 | ||||
Mechanical Properties (Minimum value at 20ºC)
| Tensile Strength (σb/MPa) | Yield Strength (σp0.2/MPa) | Elongation (σ5/%) |
| 758 | 363 | 62 |
The exceptional corrosion resistance of C22 has promoted its use in many different markets wherever harsh environments are encountered, including the chemical process, pharmaceutical, food processing, oil & gas, power generation, and the paper industries. CRA offers specialty alloy Hastelloy C22 seamless pipe & tube for use in multiple industries and applications, including:
- Chemical Processing
- Food Processing
- Pharmaceutical Industry
- Oil & Gas
- Power Generation
- Pulp & Paper Industries
| Nickel Sheet | |
| Thickness | 0.3mm – 6.0mm |
| Width | 1000mm – 2200mm |
| Length | Produce as requirement |
| Nickel Plate | |
| Thickness | 3.0mm – 300mm |
| Width | 1000mm – 3000mm |
| Length | Produce as requirement |
| Nickel Strip / Nickel Foil | |
| Thickness | 0.02mm – 16.0mm |
| Width | 5mm – 900mm |
| Nickel Coil | |
| Thickness | 0.3mm – 16.0mm |
| Width | 1000mm – 3000mm |
| Nickel Pipe | |
| Outside Diameter | 6.0mm – 1219mm |
| Thickness | 0.5mm – 100mm |
| Nickel Capillary Pipe | |
| Outside Diameter | 0.5mm – 6.0mm |
| Thickness | 0.05mm – 2.0mm |
| Nickel Bar | |
| Diameter | Ф4mm – Ф600mm |
| Nickel Wire Rod | |
| Diameter | Ф0.01mm – Ф6.0mm |
| Material Classification | |
| Inconel | Inconel 722, Inconel 725, Inconel X-750, Inconel 625, Inconel 686, Inconel 690, Inconel 702, Inconel 706, Inconel 713C, Inconel 600, Inconel 601, Inconel 602CA, Inconel 617, Inconel 718. |
| Incoloy | Incoloy 945, Incoloy A-286, Incoloy 901, Incoloy 903, Incoloy 907, Incoloy 909, Incoloy 925, Incoloy 926, Incoloy 330, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 801, Incoloy 840, Incoloy 20, Incoloy 205, Incoloy 208 |
| Hastelloy | Hastelloy C 276, Hastelloy G, Hastelloy W, Hastelloy X, Hastelloy G-30, Hastelloy G-35, Hastelloy G3, Hastelloy N, Hastelloy S, B-2, Hastelloy B-3, Hastelloy C2000, Hastelloy C22 |
| Haynes | Haynes 75, Haynes 244, Haynes 25, Haynes 263, Haynes 282, Haynes 556, Haynes 188, Haynes 230, Haynes 233, Haynes 242 |
| Monel | Monel 400, Monel K-500, Monel R405, Monel 401, Monel 404, Monel 405. |
| Nimonic | Nimonic 91, Nimonic C263, Nimonic PE11, Nimonic PE16, Nimonic PK33, Nimonic 80A, Nimonic 96, Nimonic 90, Nimonic 901, Nimonic 105, Nimonic 115 |
| Other Nickel | Waspaloy, Multimet N155, Mumetal 80, Rene 41, Kovar, Maraging 250, Maraging 300, Maraging 350, MP159, MP35N, Alloy 46, Alloy 48, Alloy 52, Alloy 42, Alloy 45, Cobalt alloy 6b, Custom 455, Invar 36, Invar 42, Nickel 200, Nickel 201 |

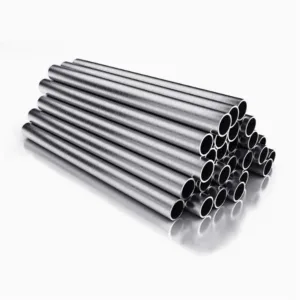

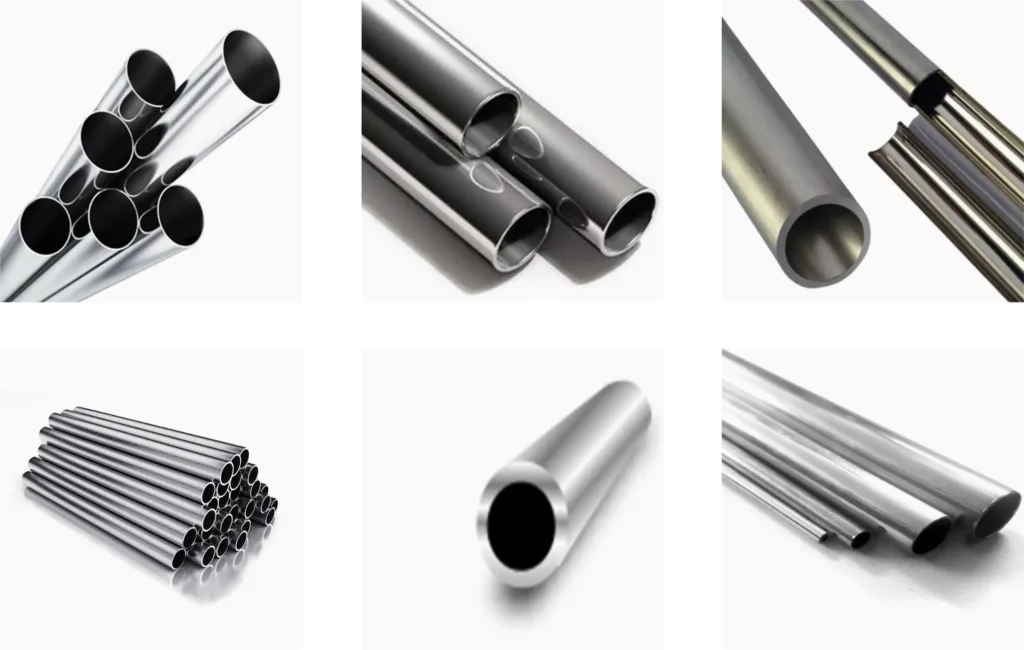

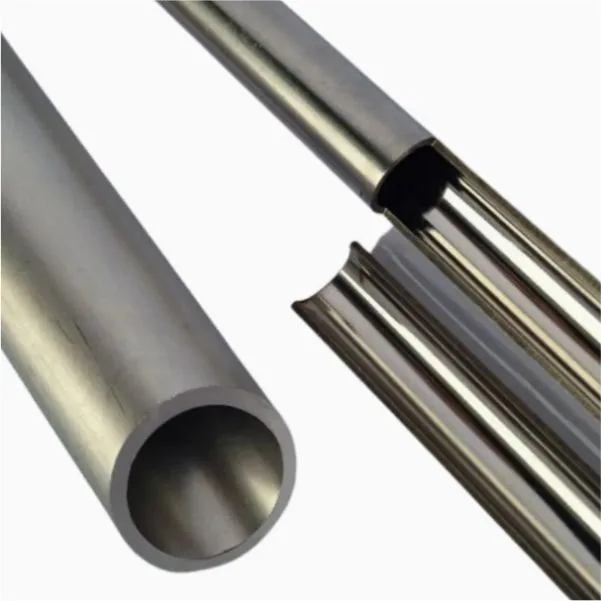

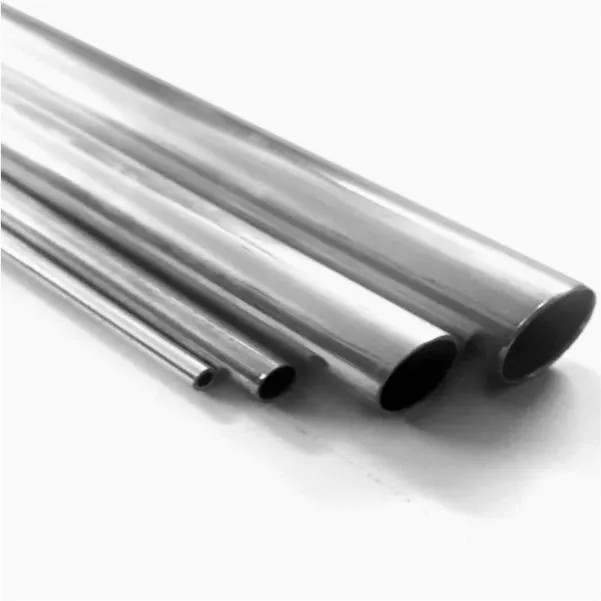

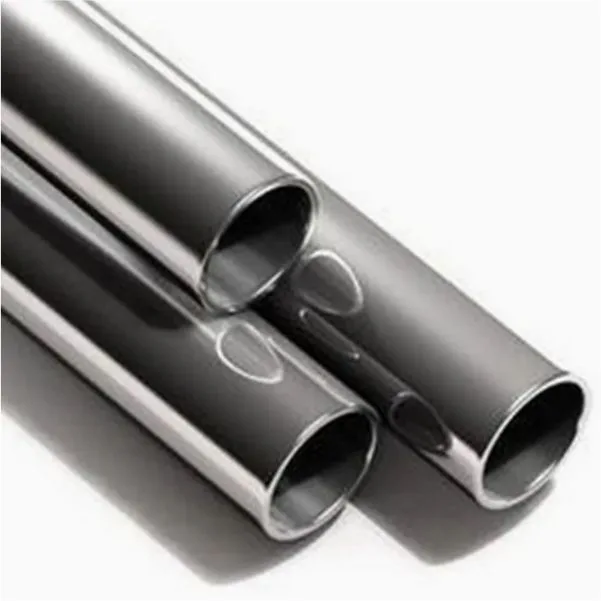

Detailed Photos
FAQ
Are you a factory or a trading company?
We are a dedicated factory specializing in the manufacturing of seamless stainless steel pipes. Additionally, we offer welded stainless steel pipes and pipe fittings to meet your comprehensive needs. Our in-depth market knowledge ensures that we deliver only the highest quality products, each meticulously inspected before shipment.
Do you have any certificates?
We proudly hold numerous prestigious domestic and international certifications, including the EU ISO9001 Quality Management System Certification, TUV Welding Certification, and the China Pressure Pipe Manufacturing License (TS).We are also exclusively authorized by the American Hastelloy Company in China for the collaboration, development, and production of Hastelloy long products.
What is your delivery time?
Delivery time primarily depends on your order volume. Typically, we deliver within approximately one month for a standard 40FT container. For in-stock items, shipping can be expedited to just 5 days.
What are your payment terms?
Our standard payment terms are a 30% deposit with the remaining balance against the bill of lading. We also accept L/C. Shipping terms include EXW, CFR, and CIF, tailored to your preference.
How can you guarantee the quality of my goods?
We ensure all materials undergo 100% PMI testing and precise measurement before shipping. We welcome third-party inspections and provide the EN10204.3.1B Mill Test Certificate for all materials.
How do you establish long-term and positive business relationships?
1. We maintain superior quality and competitive pricing to maximize our customers’ benefits.
2. We respect every customer, conducting business with sincerity and maintaining high service standards both before and after every transaction.
